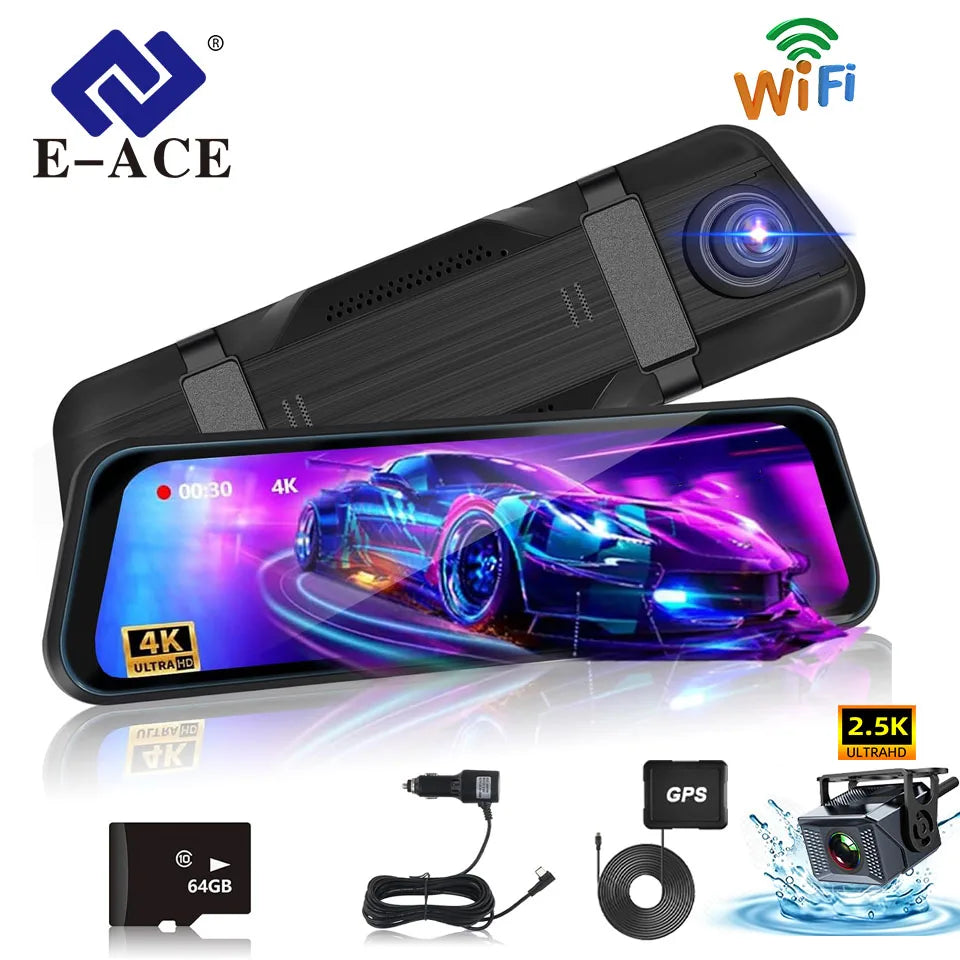

E-ACE 4K Mirror 9.66'' WIFI GPS Dashcam Optional 2.5K Rear Camera Full Touch Screen Rearview Mirror Camera For WiFi&APP Control
- Free US shipping over $75
- 2-year warranty & 30-day returns
- In stock, ready to ship
SPECIFICATIONS
APP Compatibility: YES
Aperture: F1.6
Assembly Mode: After The Loading Machine Integrated
Audio Recorded: Yes
Battery: Built-in
Brand Name: E-ACE
Built-in Screen: Yes
Cable Length: 3.5M Car charging cable
Camera Resolution: 3840x2160
Certification: CE,RoHS
Chipset Manufacturer: HISILICON
Choice: yes
Data Storage Capacity: Up to 256GB
Display: IPS
Display Size: 9.66Inches
Frames Per Second: 25
GPS logger: External
High-concerned chemical: none
Imaging Sensor: SONY Starvis 2 IMX678
Is Batteries Included: no
Item Type: Car DVR
Loop-Cycle Recording Feature: Yes
Max External Memory: 128G
Memory Card Required Reding Speed: Class 10
NightShot Function: Yes
Number Of Lenses: 2
OSD Language: Arabic,Chinese (Simplified),Chinese (Traditional),Dutch,English,French,German,Italian,Japanese,Korean,Polish,Russia,Russian,Spanish,Ukrainian
Origin: Mainland China
Original Package: Yes
Pixels: 800Mega
Power Source: Corded electric
Rear Camera: Yes
Screen Ratio: 16:9
Special Features: G-Sensor,Digital zoom,sd/mmc card,With Rearview Mirror,Radar Detector,Anti Surge Voltage Impact,Waterproof,Anti Fog,Anti Vibration,Real Time Surveillance,Automatic White Balance,Wide Dynamic Range,wifi function,Parking Monitor,Speed and Coordinates Recording,3D DNR,External GPS
Touch Screen: Yes
Video Code: H.264
Video Format: TS
View angle: 170°+150°
Warranty: 365Days
Working Temperature: -20°C - 65°C
★The driving recorder has high requirements for memory cards. Please use a professional driving recorder card with a CLASS10 or higher memory card, otherwise it may cause issues such as inability to record videos and video lag. ★Please ask the customer to carefully review the accessories included in the package main image before placing an order based on their needs. Please refer to the main images of each package for accuracy. (The items included in the SKU package are subject to the package pictures),f you only ordered a DVR and later want to order a rear camera, please contact us to match the correct rear camera to avoid other home rear cameras not matching our machine
Features And Specifications
▶Installation Type: Rearview Mirror, suitable for all vehicles with mirror
▶Screen(Display) Size: 9.66 Inch IPS Touch Screen
▶Chipset(Processor/CPU): Hisilicon
▶Camera Sensor: Front Sony 678 + Rear Sony IMX 355

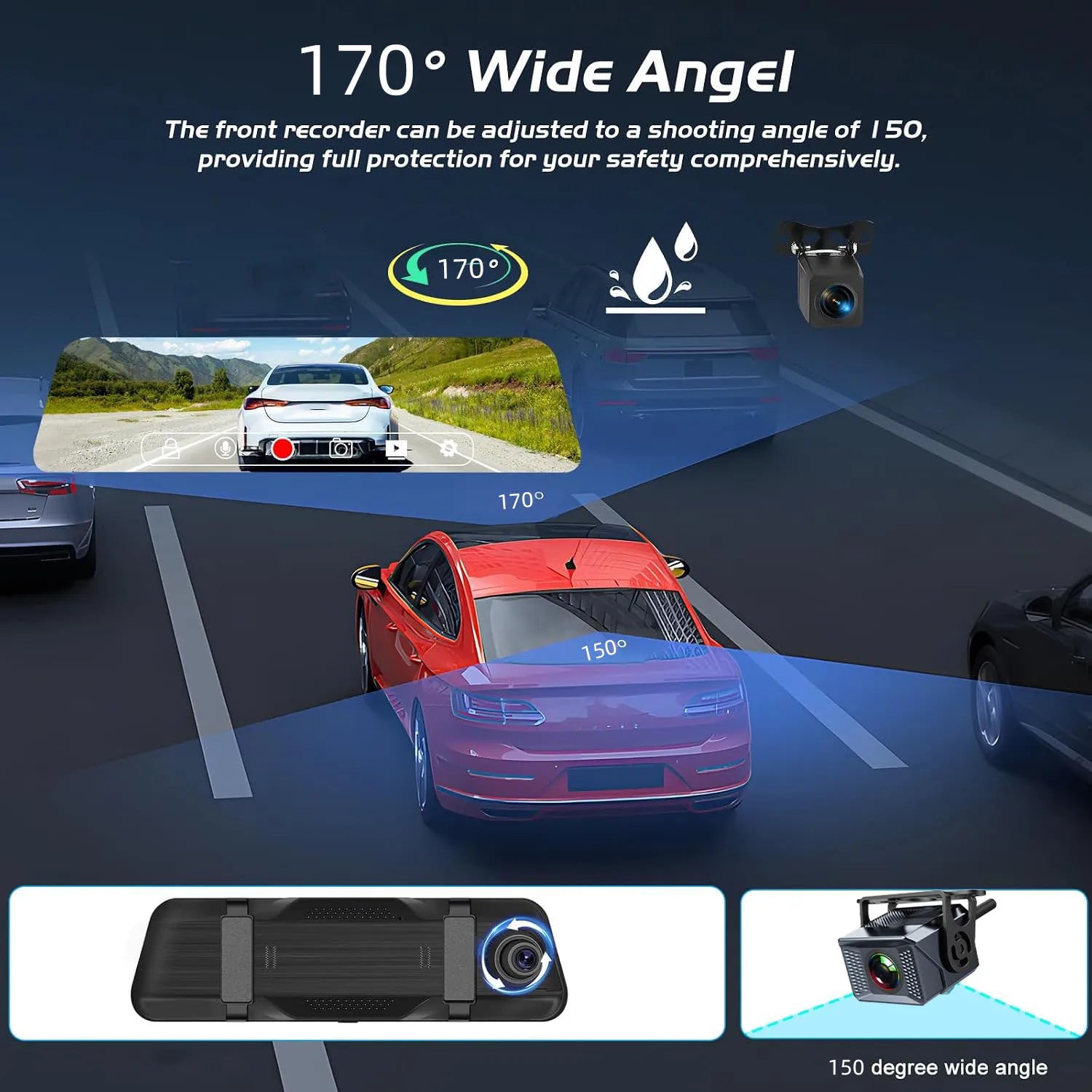

▶Camera Lens: Front (7 Glass +170 Degree Angle + F1. Aperture) Rear (6 Glass + 150 Degree Angle + F1.8 Aperture)
▶Video Resolution: Front: 4K(3840*2160@25FPS); 2.5K(Rear: 2560*1440@25FPS)
▶Photo Resolution: 14M
▶Video Code: H.264
▶Battery: Built-In (Built-in battery is very small, can not support working, only for save time&setting, please use original power charger when working)
▶OSD Languages: English (default), Russian,Hebrew, Chinese, French, Turkish, Spanish, Japanese, Arabic, Korean, polish, Lithuanian, Hungarian, Italian, Portuguese, German, Czech, Slovak, Dutch, Romanian, Greek(Because the device cannot have too many built-in languages, if your language is not available, please contact our human customer service to send the firmware program for the corresponding language.）
▶Memory Card: Micro SD Card, class 10 and 16GB to 128GB (Not included)

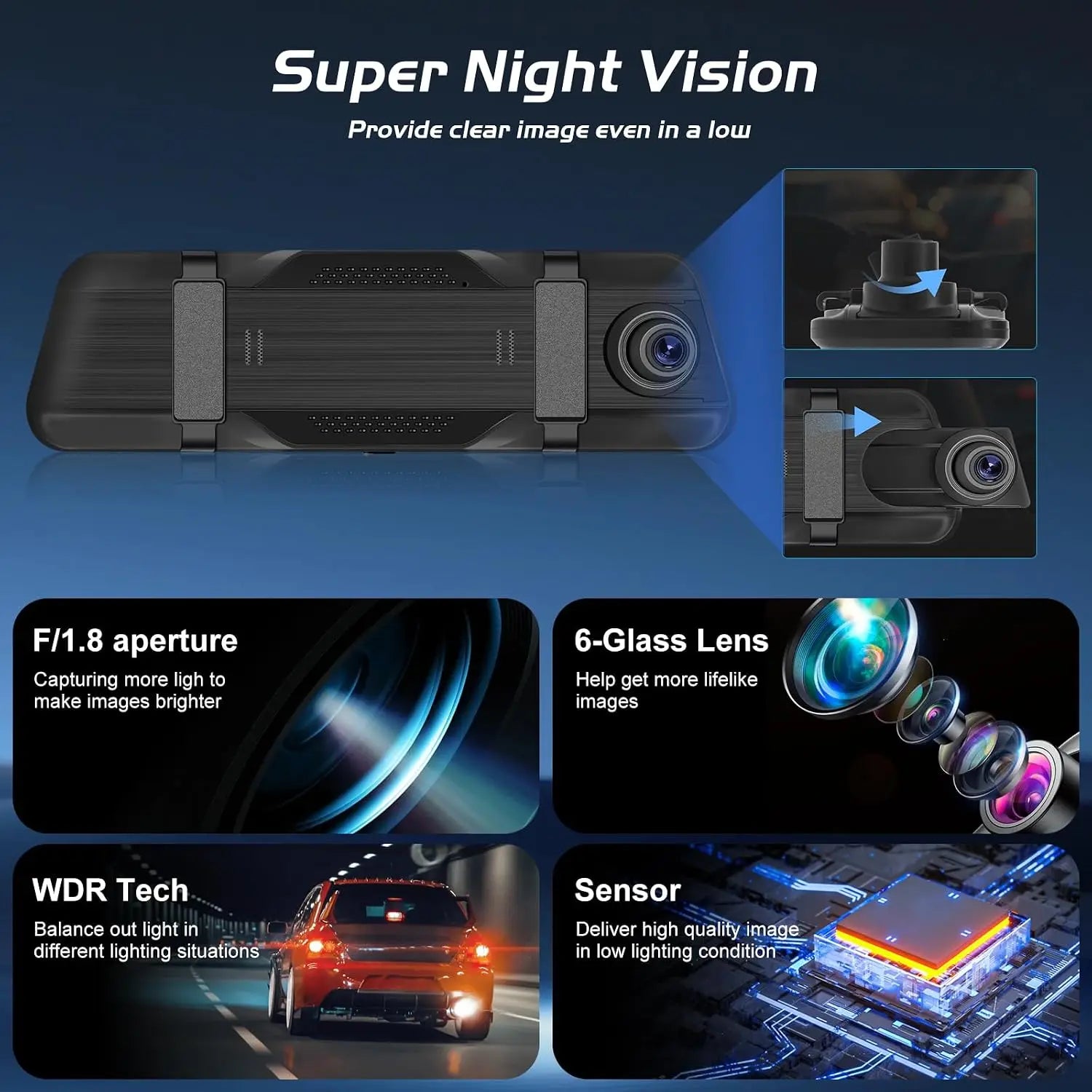

▶Add Features: Night Vision

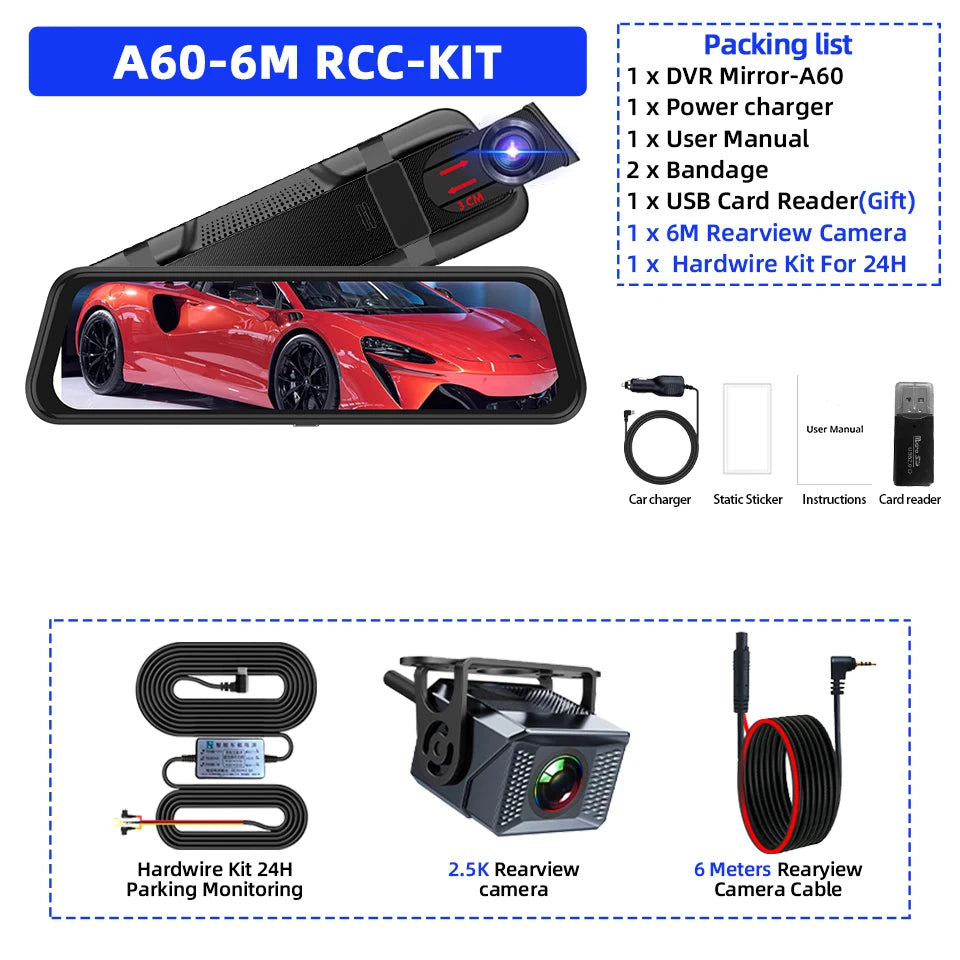

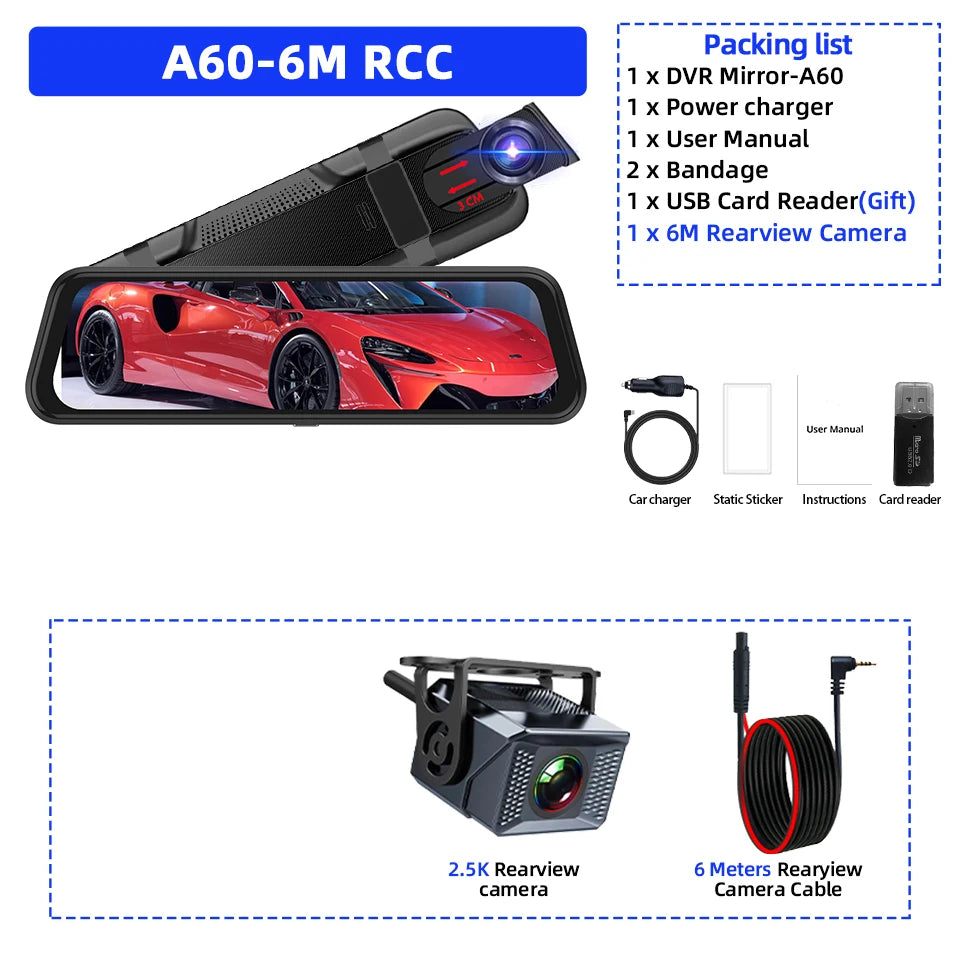

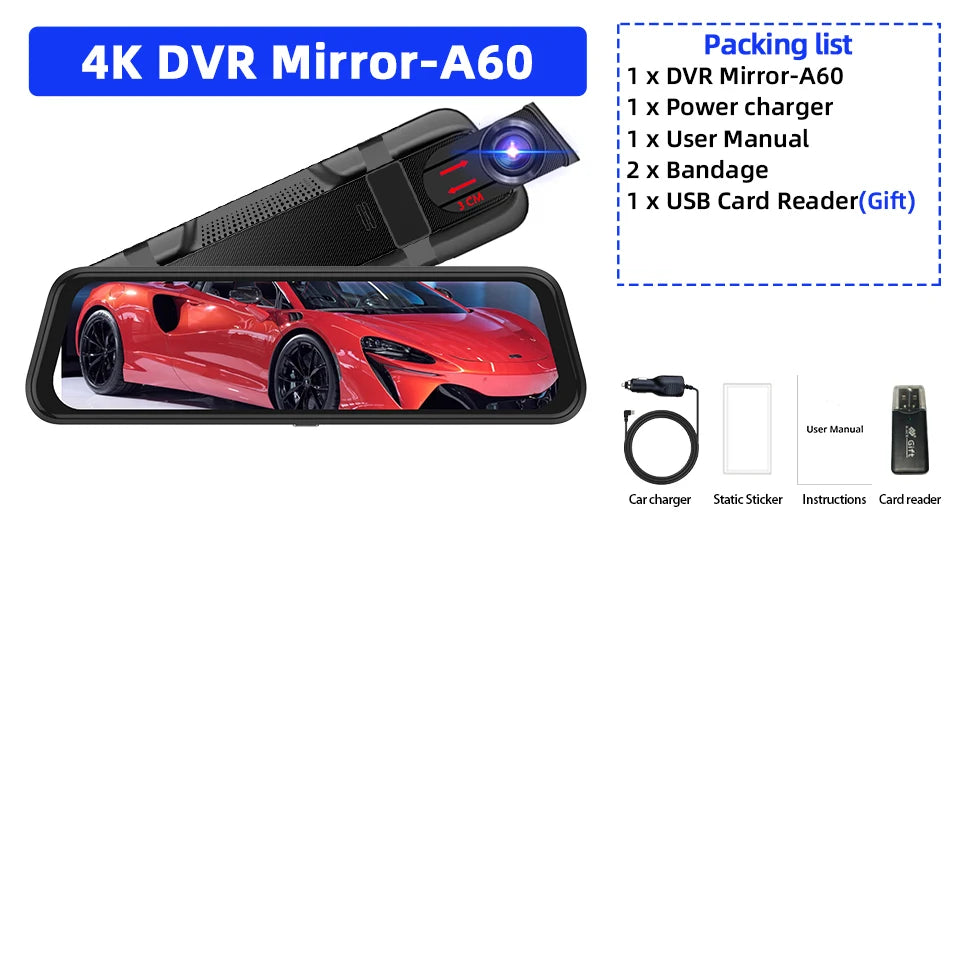

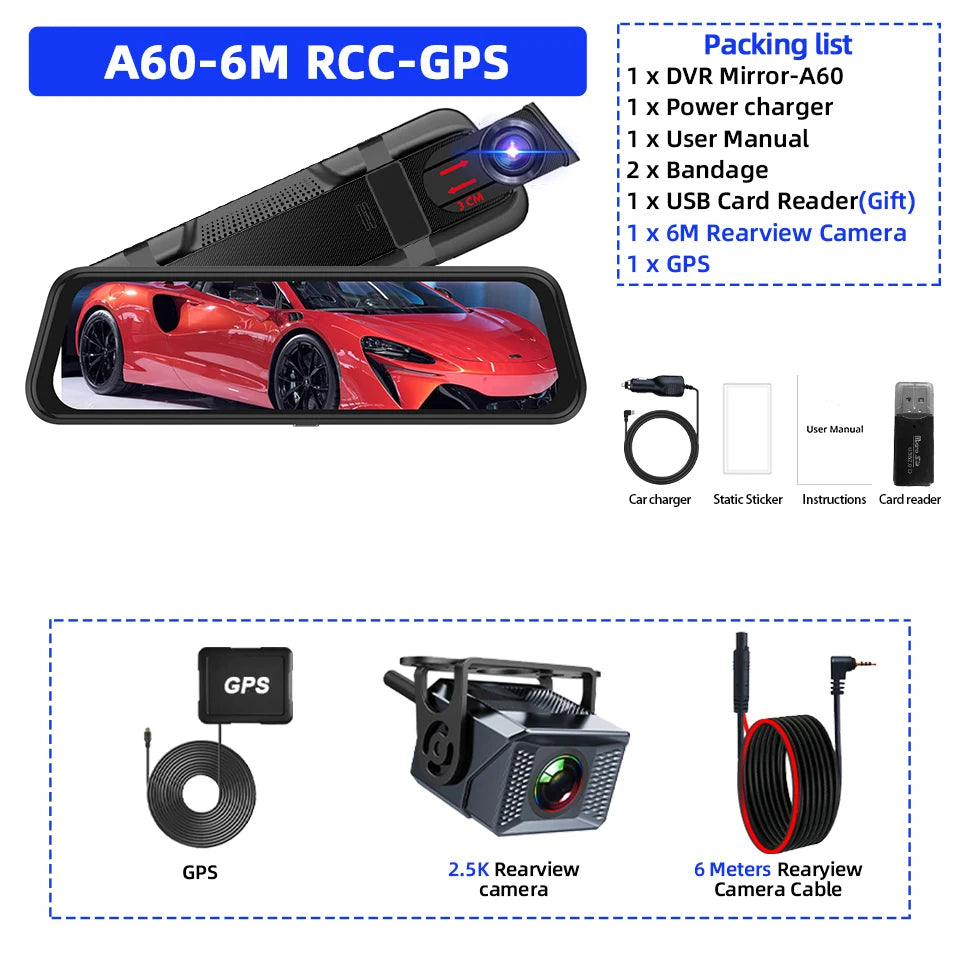

Packing List
▶1 x Packaging box
▶1 x DVR Mirror
▶1 x Power charger
▶1 x User manual
▶2 x Bandages
▶1 x Installation tools
▶1 x USB Card Reader (Gift)
▶1 x Rearview Camera With 6 Meters Cable(Optional)
▶1 x Hardwire Kit For 24H Parking monitoring(Optional)
▶1 x Real Class 10 High Speed TF Card(Optional)
Pay Attention
▶About 24h Monitoring
The DVR is only compatible with cars that have a 12V power supply. A 24V power supply will burn the motherboard. If you want to use 24V, please add a 24V to 12V Converter(BL).
▶About Video
Our Car DVR is top quality Video Recorder,must use high quality Class 10 TF Card, any low quality/low speed TF card all can't support our DVRs work normally, if you can't make sure you have good TF Card, please buy our Original TF Card together.
▶About Rear Camera
Because the Chipset and Camera Sensor are different with other seller, we only guarantee that our Original rear Camera can work well with our Dashcam.

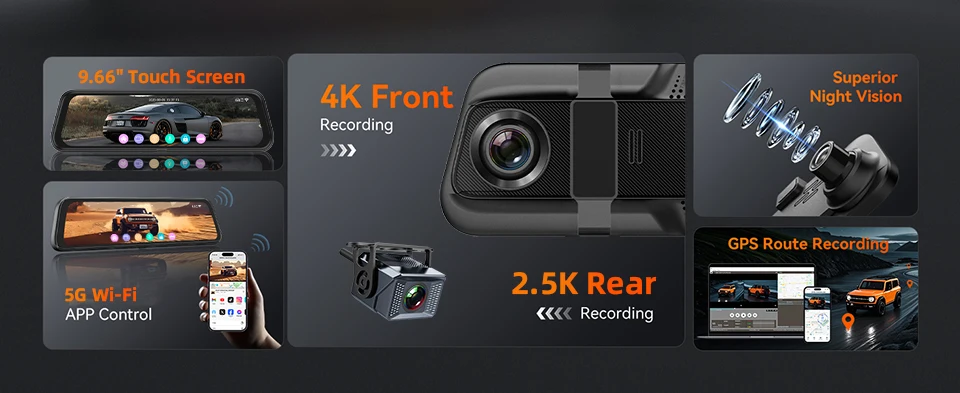

Main Features

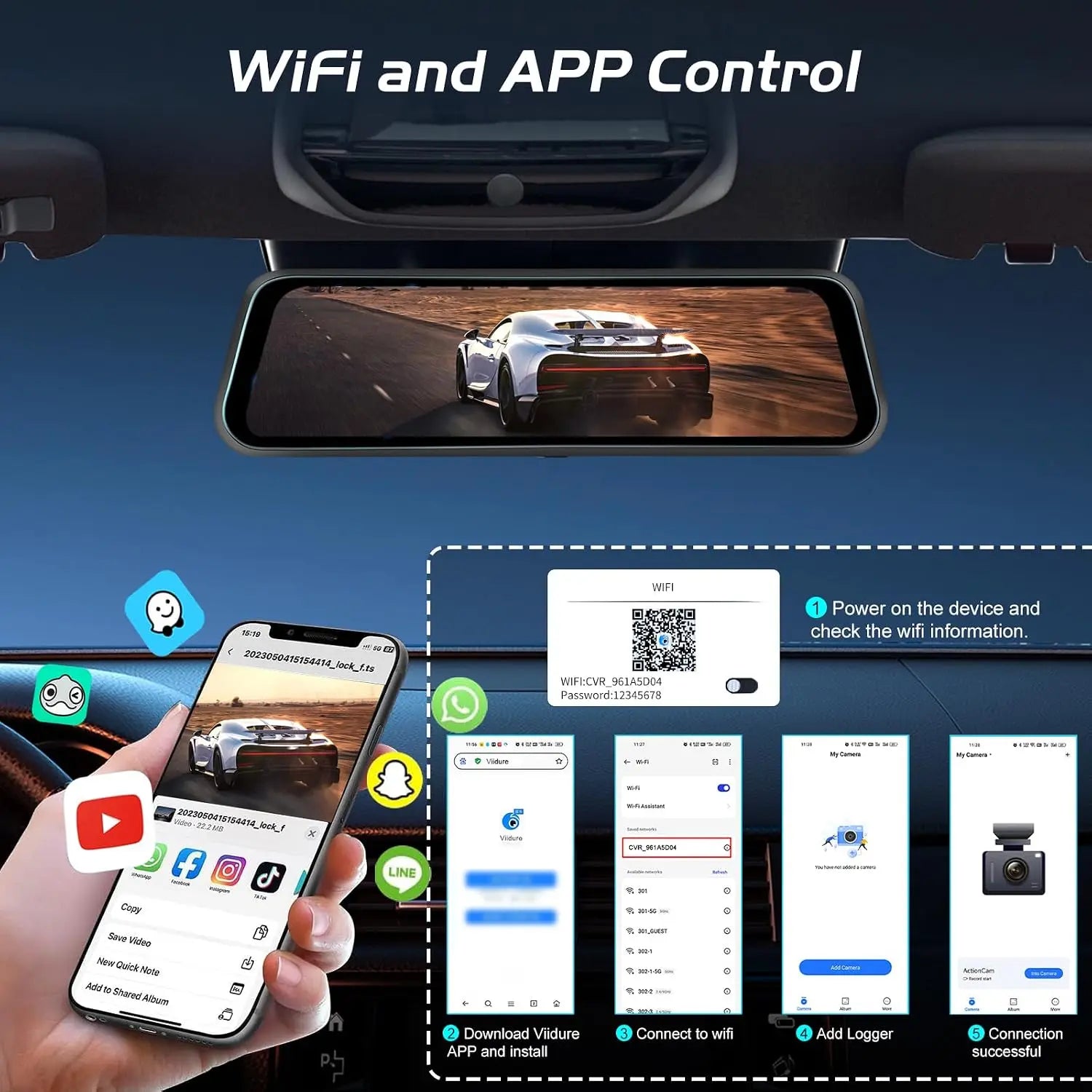

Built - in 5G Wi - Fi for Car Video Playback
Faster & Easier Access via “Viidure” APP with Boosted Download Speed
9.66 - Inch Large - Screen Car Rearview Mirror Monitor
Sized to Fit Most Car Mirrors with Clear Display
Loop Recording for Car Dashcam
Auto - Overwrite Old Footage to Save New Files
24H Parking Monitor for Vehicle Security
G - Sensor & Time - Lapse Modes for Continuous Protection
Temperature - Resilient Car Device
Heat & Cold Resistance for Extreme - Temp 4K Clarity

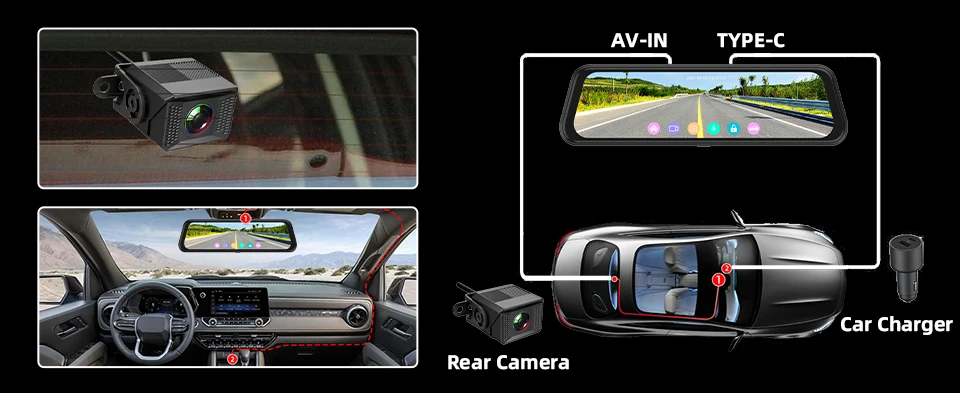

Equipment interface connection diagram

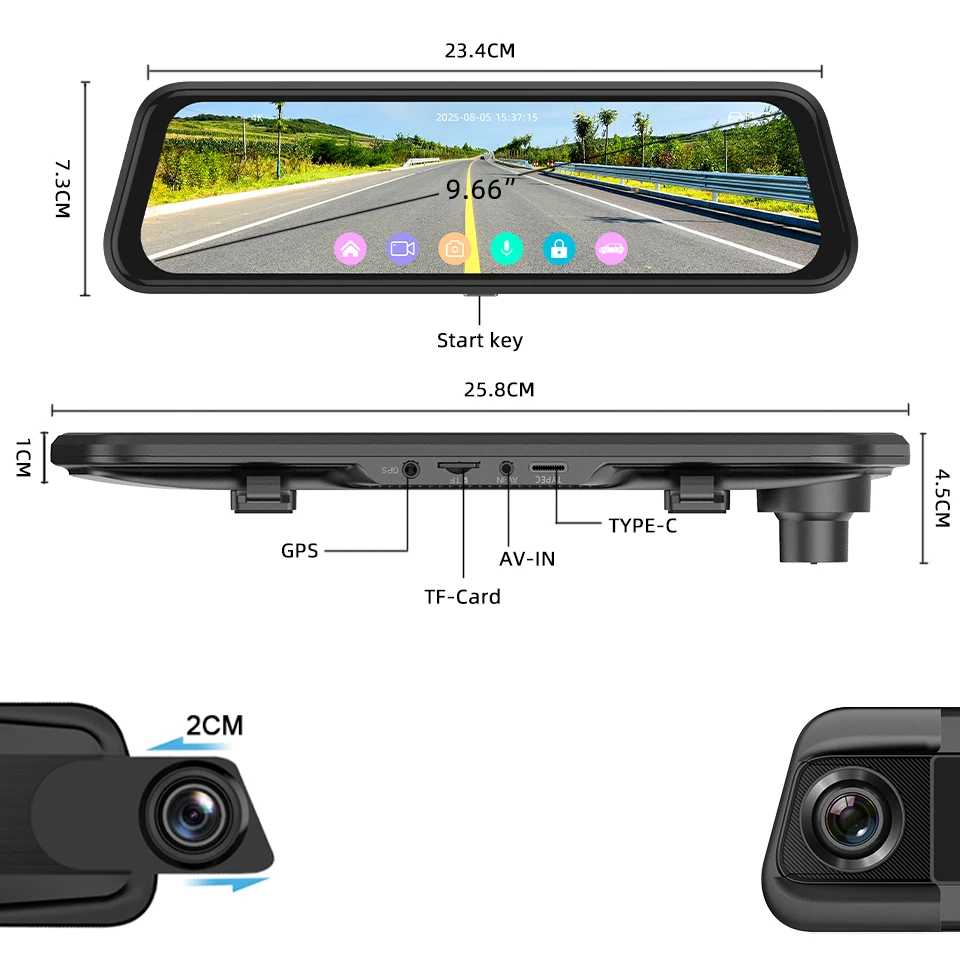

Product Size

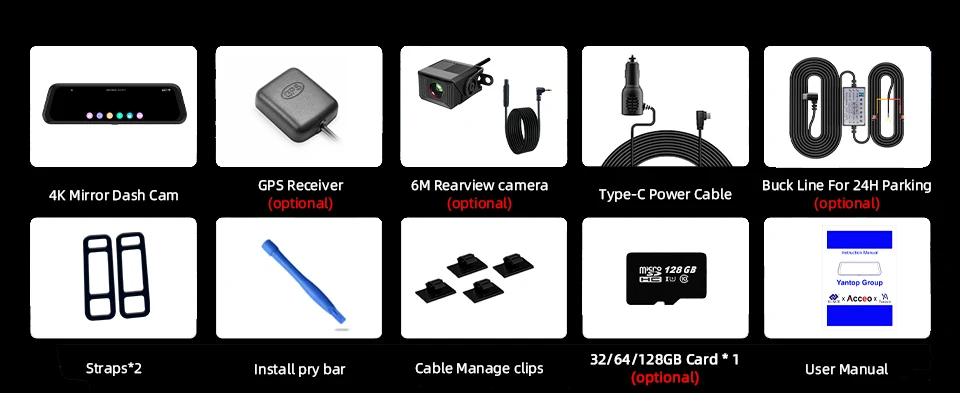

Item List

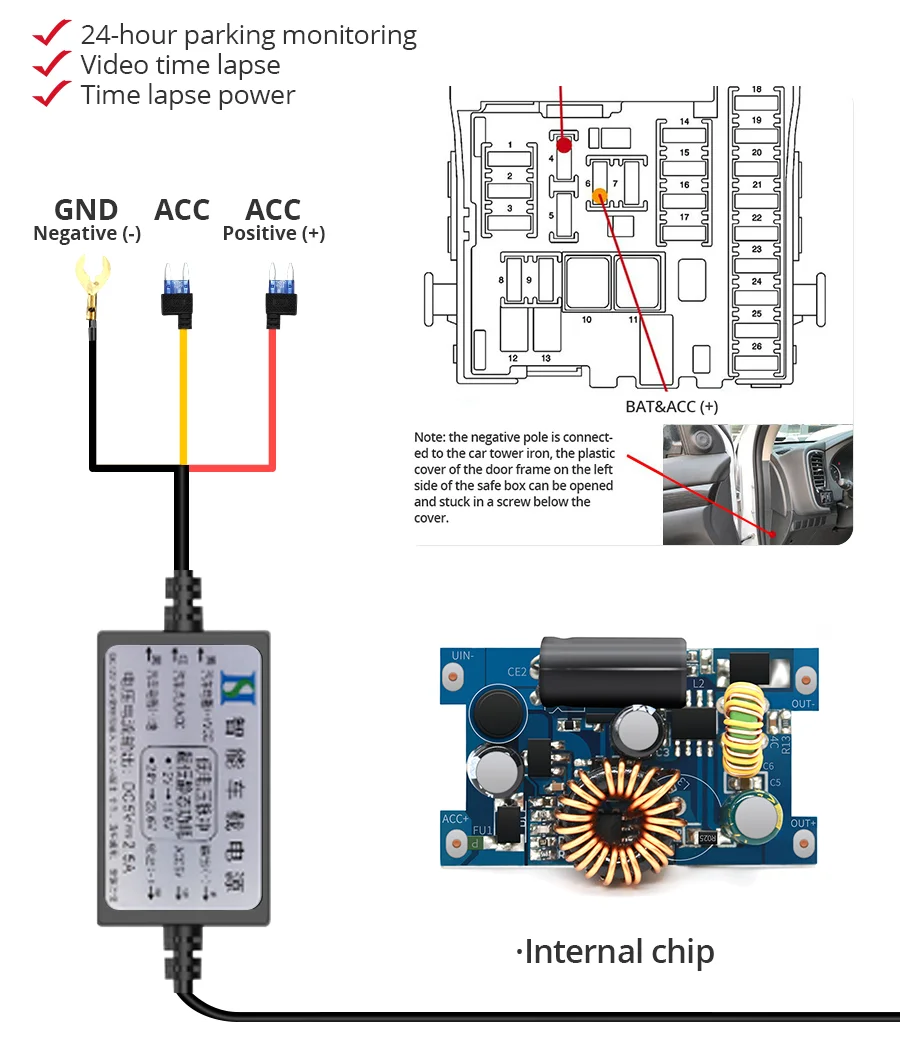

Hardwire Kit
1. Bat line, connected to: a hole that remains energized even when the car is turned off.
2. ACC line, connected to: a hole that is not energized when the car is turned off, but becomes energized when the car is started.
3. Black line, connected to: ground.

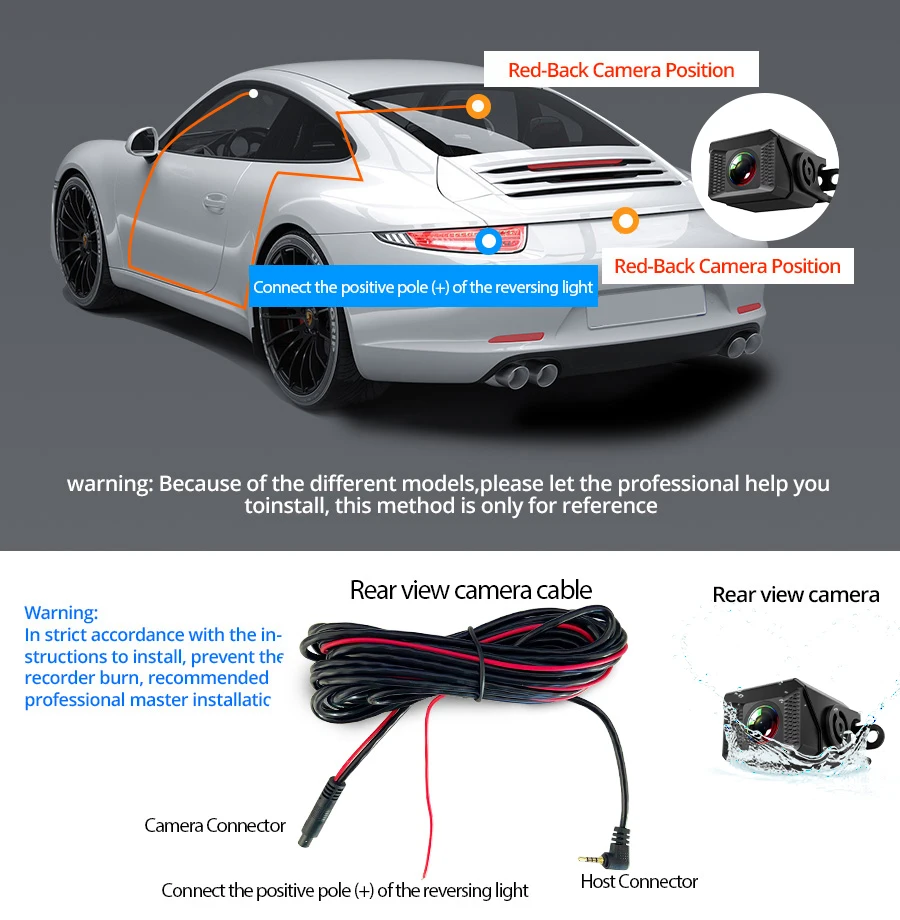

About Rear Camera Installation
Please connect the rear camera's Red cable wire with your car reverse lamp power's Positive pole(+). and then plug the car charger into the cigar lighter to power supply the car dvr.
When you get your car in Reverse Gear,the car dvr will automatically switch to the rear camera with parking line.Then the auto reversing function will work.
